CMP signal

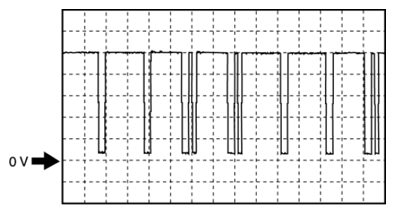

Fig 1: CMP Signal Waveform

PCM terminals

• 2N (+)-Negative battery terminal (-)

  Oscilloscope setting

• 1 V/DIV (Y), 20 ms/DIV (X), DC range

  Vehicle condition

• idle (after warm up)
