Outer Mirror Glass Installation

  1. Connect the connector to the outer mirror glass. (Vehicles with heated outer mirror)
  2. Press part A on the outer mirror glass and install pin A.

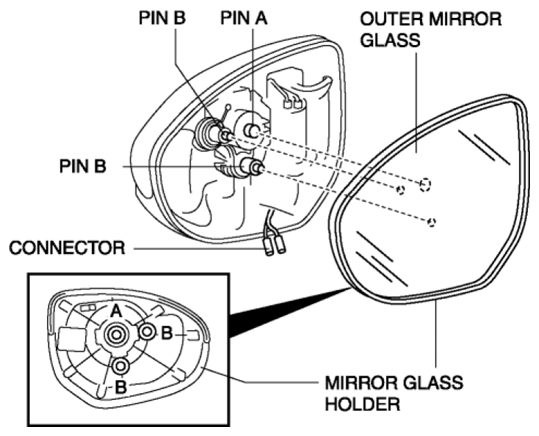

    Fig 1: Identifying Mirror Glass Holder Pins
    G08107990
  3. Press part B on the outer mirror glass and install pins B.
