Traction Control Switch: Testing and Inspection

DSC OFF SWITCH INSPECTION

1. Remove the DSC OFF switch. Service and Repair

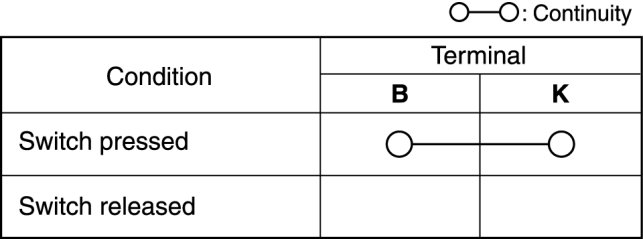

2. Verify that the continuity between the DSC OFF switch terminals is as indicated in the table.

- If not as indicated in the table, replace the DSC OFF switch.

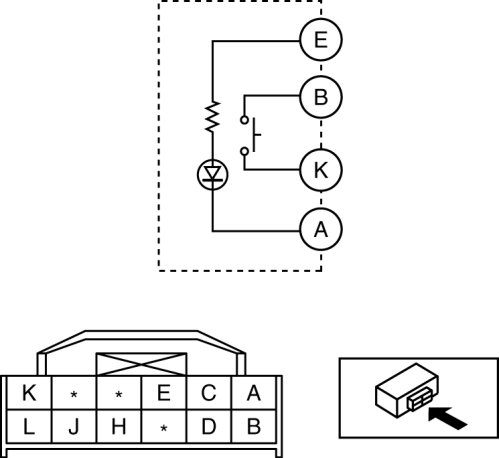

3. Apply battery voltage to DSC OFF switch terminal E, and connect terminal A to ground.

4. Verify that the LED illuminates.

- If there is any malfunction, replace the DSC OFF switch.
