Discharge Headlight Control Module Removal/Installation

DISCHARGE HEADLIGHT CONTROL MODULE REMOVAL/INSTALLATION

CAUTION:
- Incorrect servicing of the discharge headlights could result in electrical shock. Before servicing the discharge headlights, always refer to the discharge headlight service warnings. Service Precautions

1. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement Removal and Replacement

2. Remove the front bumper. Front Bumper Removal/Installation

3. Remove the front combination light. Front Combination Light Removal/Installation

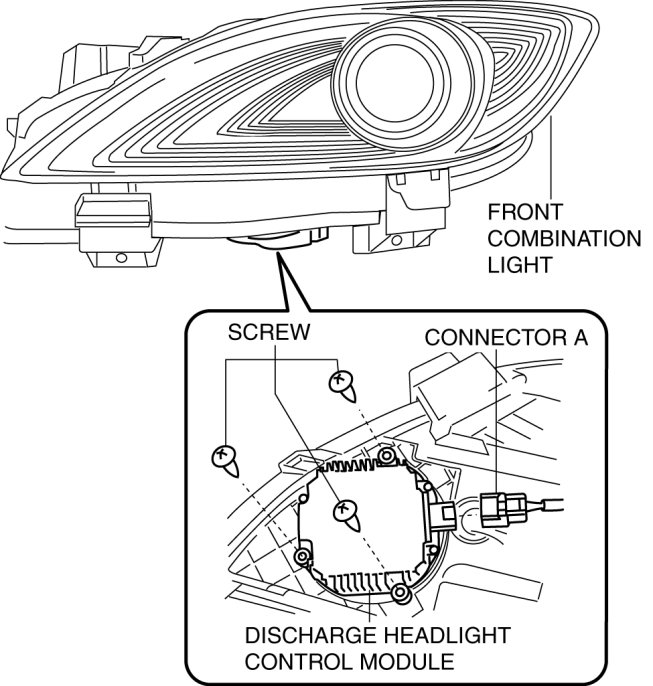

4. Remove the screws.






5. Disconnect the connector A.

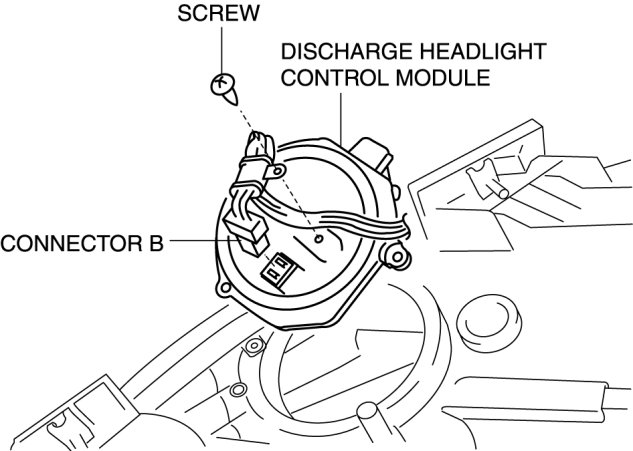

6. Remove the screw.






7. Disconnect the connector B.

8. Remove the discharge headlight control module.

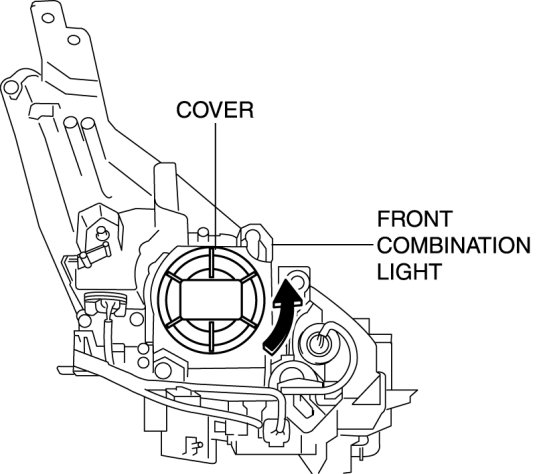

9. Rotate the cover in the direction of the arrow shown in the figure to remove it.

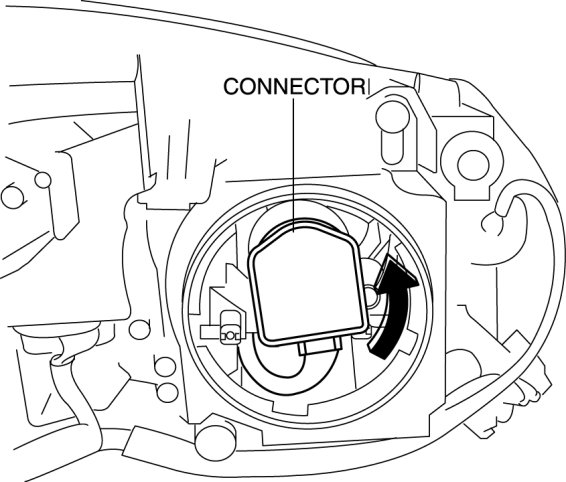

10. Rotate the connector in the direction of the arrow shown in the figure to remove it.

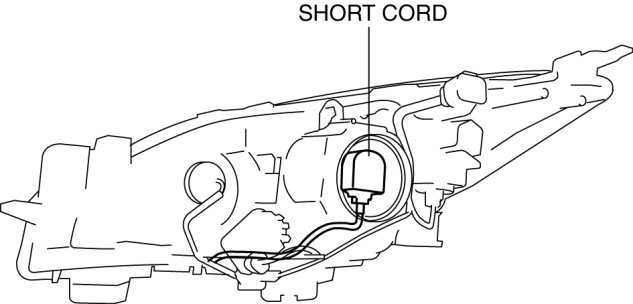

11. Remove the short cord.






12. Install in the reverse order of removal.
