Seat Position Sensor: Service and Repair

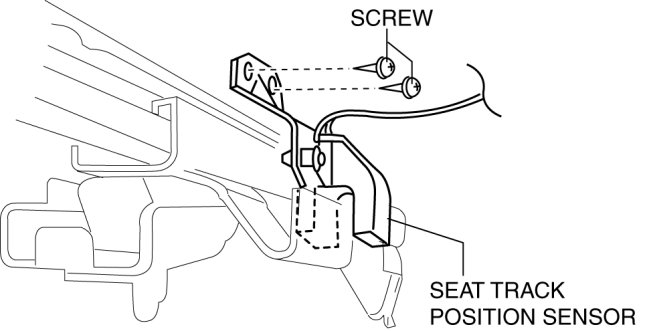

SEAT TRACK POSITION SENSOR REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM]

1. Switch the ignition to off.

2. Disconnect the negative battery cable and wait for 1min or more. Removal and Replacement Removal and Replacement Removal and Replacement

3. Remove the front driver's seat. Removal and Replacement

4. Remove the front seat slide adjuster. Front Seat Slide Adjuster Removal/Installation

5. Remove the screws.






6. Remove the seat track position sensor.

7. Install in the reverse order of removal.
