Washer Fluid Level Switch: Testing and Inspection

WASHER FLUID-LEVEL SENSOR INSPECTION

1. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement Removal and Replacement

2. Remove the front bumper. Front Bumper Removal/Installation

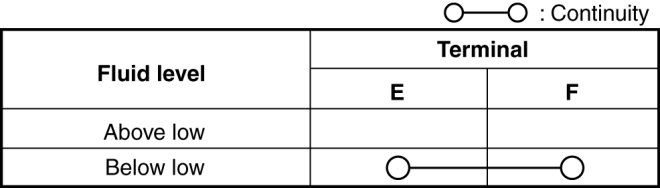

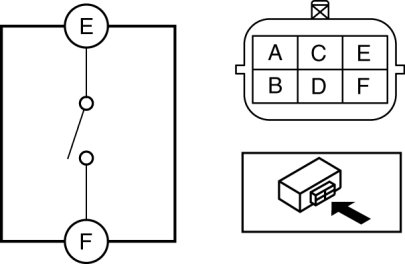

3. Verify that continuity between the washer fluid-level sensor terminals is as indicated in the table.






- If not as specified, replace the washer fluid-level sensor.
