Manifold Absolute Pressure (Map) Sensor Removal/Installation

  1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5] .)
  2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5] .)
  3. Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)
  4. Disconnect the MAP sensor connector.
  5. Remove the MAP sensor.

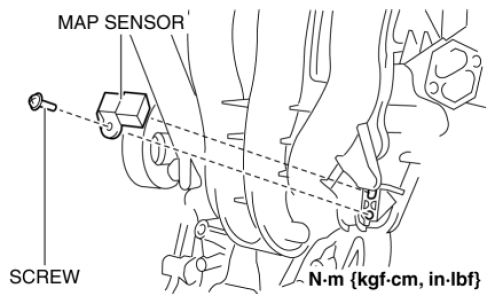

    Fig 1: Locating MAP Sensor With Torque Specifications
    G08155397
  6. Install in the reverse order of removal.
