Access Cover: Service and Repair

PLUG HOLE PLATE REMOVAL/INSTALLATION [MZR 2.5]

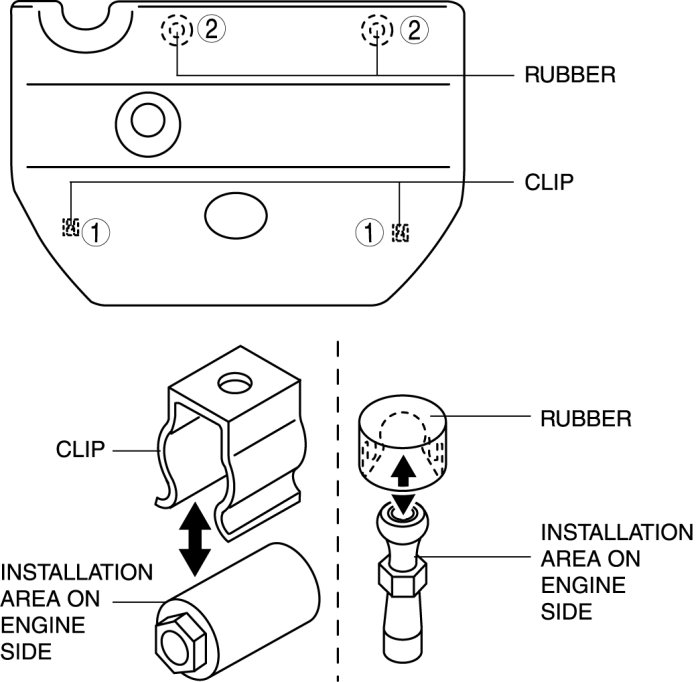

1. Remove the plug hole plate in the order indicated in the figure.
NOTE:
- Lift off and remove the plug hole plate from the installation areas as shown in the figure.





2. Install the plug hole plate in the reverse order of removal.
