Horn: Testing and Inspection

HORN INSPECTION

1. Disconnect the negative battery cable.

2. Slightly bend back the front mudguard. Mudguard Removal/Installation

3. Remove the horn. Service and Repair

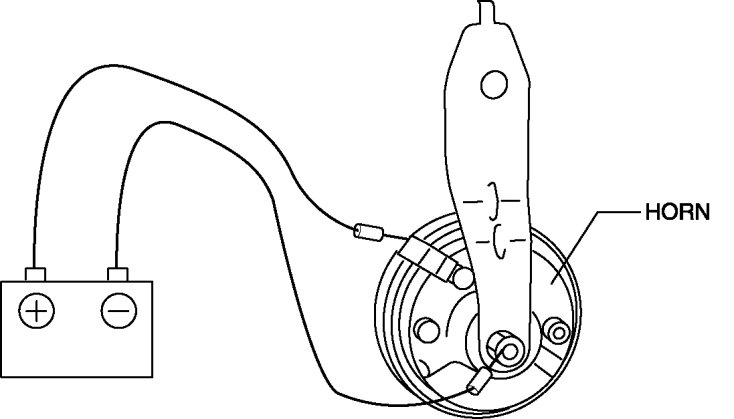

4. Apply battery positive voltage and connect the ground as shown in the figure and verify the keyless beeper sound operation.






- If the beep sound cannot be verified, replace the horn.
