System Specifications





TRANSMISSION/TRANSAXLE TECHNICAL DATA

Automatic Transaxle [FS5A-EL]

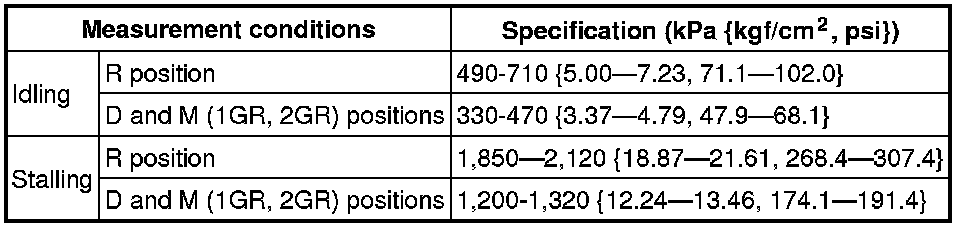

Line pressure

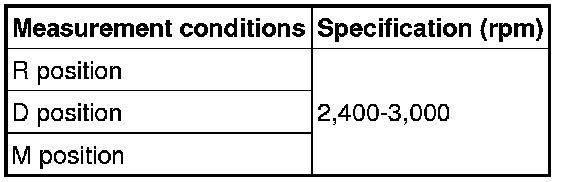

Stall speed

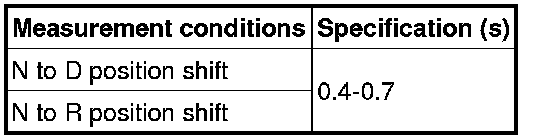

Time lag
