| DESCRIPTION |
- B1884
- Passenger air bag deactivation (PAD) indicator circuit open or short to body ground
- B1890
- Passenger air bag deactivation (PAD) indicator circuit short to power supply
|
| DETECTION CONDITION |
WARNING:
- Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only the detection conditions may cause injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure.
- Malfunction in PAD indicator circuit
|
| FAIL-SAFE FUNCTION |
- |
| POSSIBLE CAUSE |
- Information display connector malfunction
- Information display malfunction
- Open or short circuit or short to ground or short to power supply in wiring harness between information display and SAS control module
- SAS control module malfunction
|

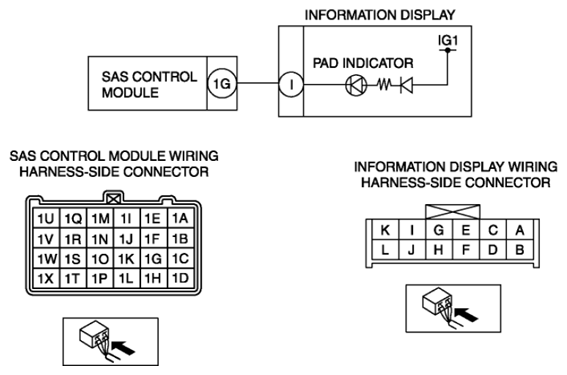

| SYSTEM WIRING DIAGRAM |
|
