Differential Assembly: Notes

  1. Assemble in the order indicated in the table.

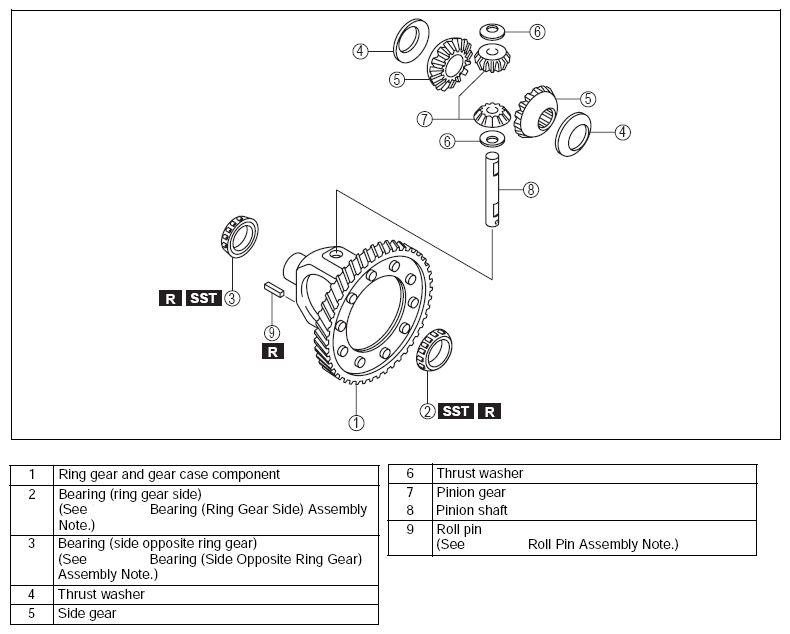

    Fig 1: Exploded View Of Differential Assembly
    G08803734
