3rd Gear, 3rd Synchronizer Ring, and 3rd/4th Clutch Hub Component Assembly Note

  1. Install the 3rd gear, inner cone, double cone, 3rd synchronizer ring, and 3rd/4th clutch hub component using a press.

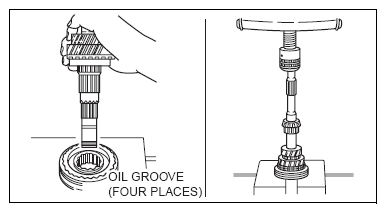

    Fig 1: Identifying 3rd Gear, 3rd Synchronizer Ring And 3rd/4th Clutch Hub Component
    G08803705
