3rd/4th Clutch Hub Assembly Note
- Install the synchronizer key springs in the clutch hub with the hooks in the grooves to hold the three synchronizer key in place.

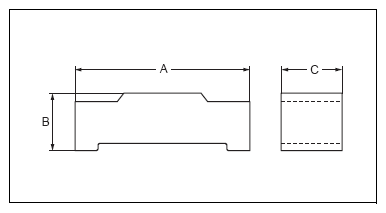

3rd/4th synchronizer key size
- 17.0 mm {0.669 in}
- 4.25 mm {0.167 in}
- 5.0 mm {0.20 in}
- Align the synchronizer ring grooves with the synchronizer key during assembly.
