1st Gear, 1st Synchronizer Ring, and 1st/2nd Clutch Hub Component Assembly Note

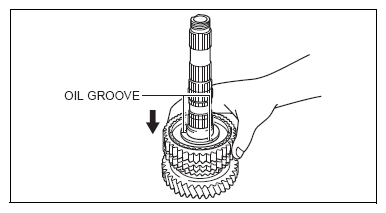

  1. Assemble the 1st gear, inner cone, double cone, 1st synchronizer ring, and 1st/2nd clutch hub component, as shown in the figure.
    Fig 1: Assembling 1st Gear, Inner Cone, Double Cone, 1st Synchronizer Ring And 1st/2nd Clutch Hub Component
    G08803724

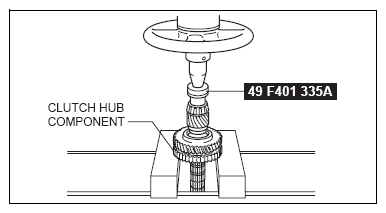

  2. Press the 1st/2nd clutch hub component on using the SST  .
    Fig 2: Pressing 1st/2nd Clutch Hub Component On Using SST
    G08803725
