SAS Control Module Connector End View - Standard Deployment Control System

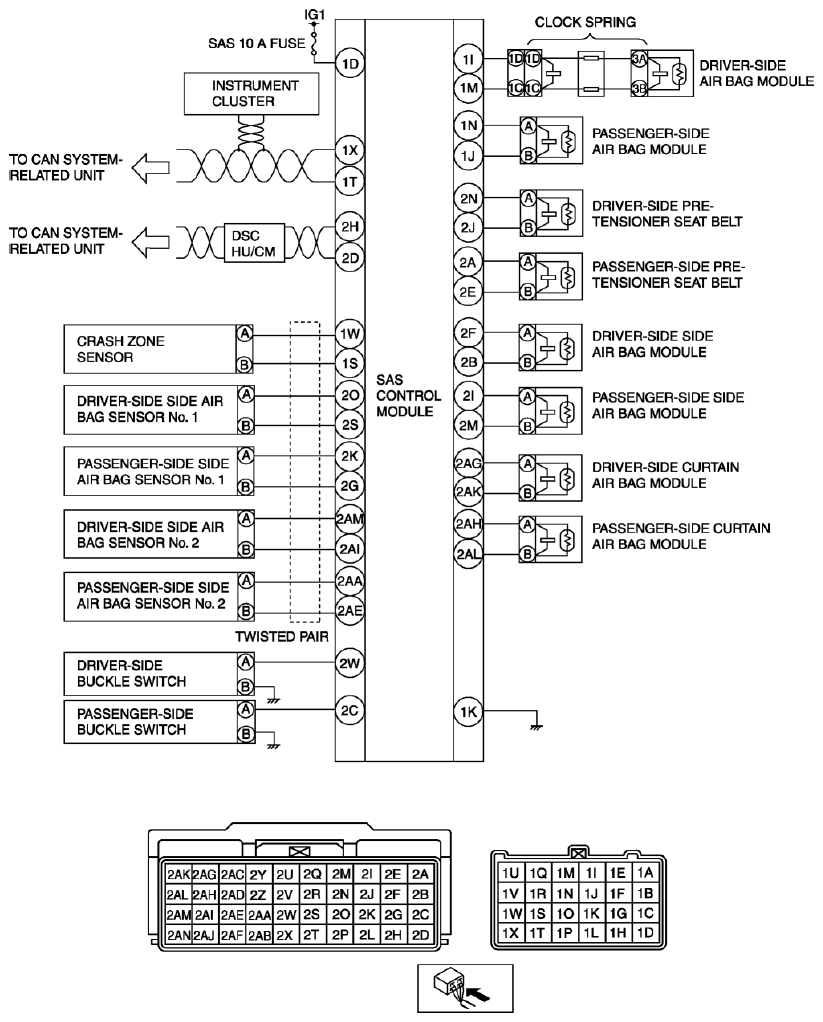

Fig 1: SAS Control Module Connector End View - Standard Deployment Control System
G08152255Courtesy of MAZDA MOTORS CORP.
