Keyless Entry: Service and Repair

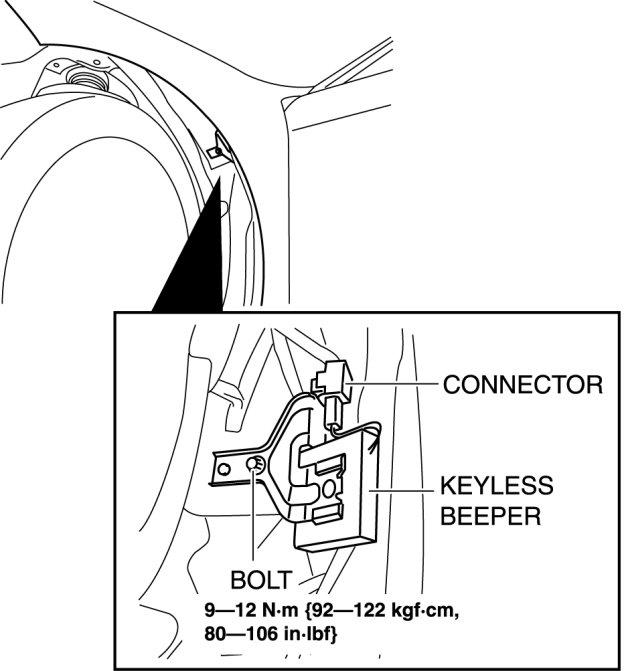

KEYLESS BEEPER REMOVAL/INSTALLATION [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM]

1. Disconnect the negative battery cable.

2. Slightly bend back the front mudguard. Service and Repair

3. Disconnect the connector.






4. Remove the blot.

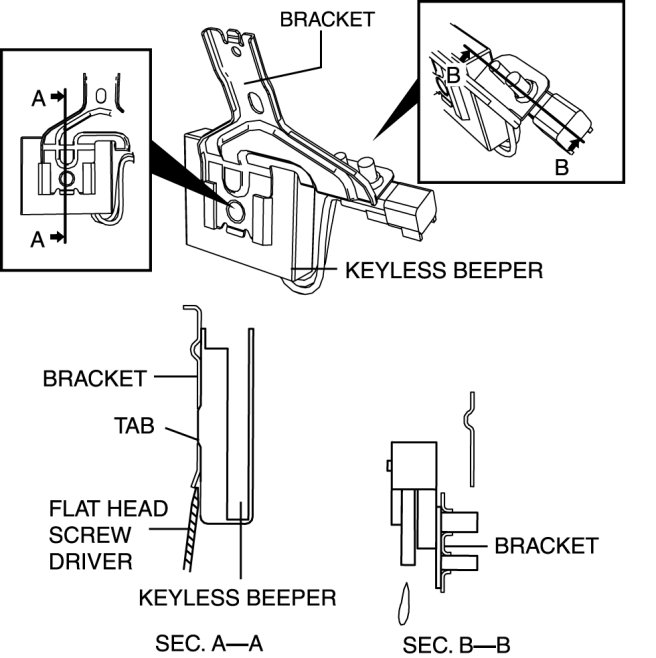

5. Press the keyless beeper tab aside using a tape-wrapped flathead screwdriver.






6. Remove the keyless beeper from the bracket.

7. Install in the reverse order of removal.
