Power Steering Line/Hose: Service and Repair

POWER STEERING FLUID LINE COMPONENT REMOVAL/INSTALLATION [MZR 2.5]

NOTE:

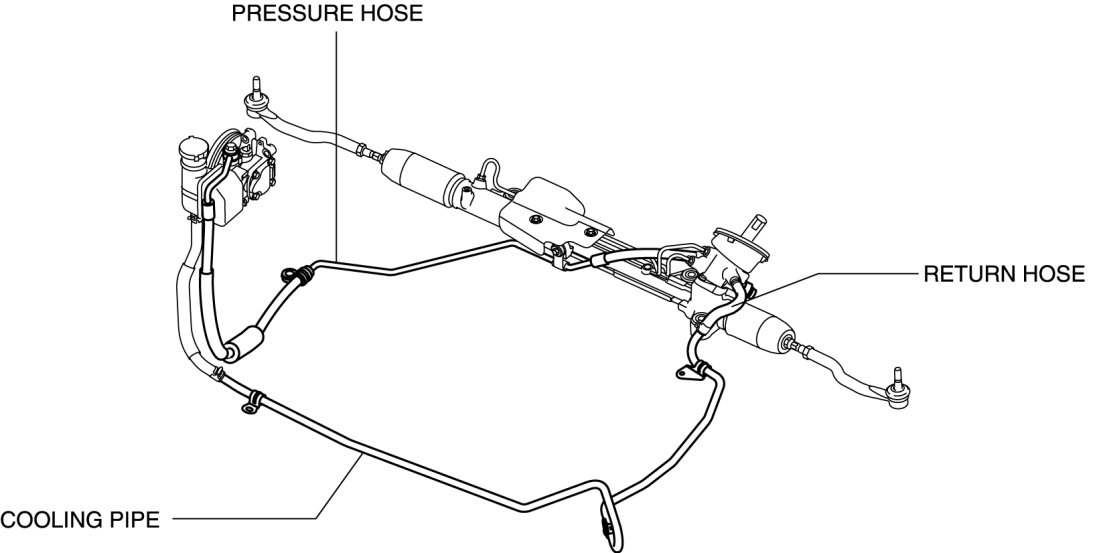

- The following procedure is for replacement of the parts shown in the figure.

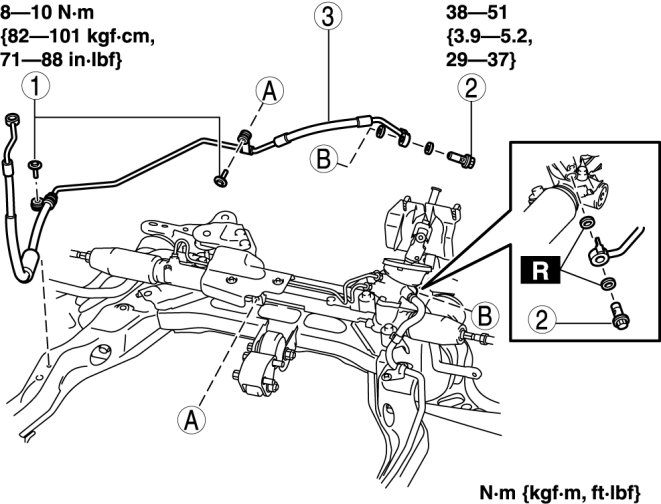

Pressure Hose Removal/Installation

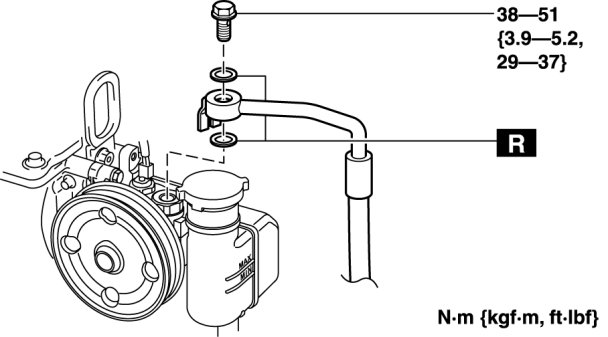

1. Remove the connecting bolt from the power steering oil pump.






2. Remove the aerodynamic under cover NO.2. Aerodynamic Under Cover No. 2 Removal/Installation

3. Set the front mudguard (RH) out of the way. Service and Repair

4. Remove the splash shield (RH).

5. Remove in the order indicated in the table.










6. Install in the reverse order of removal.

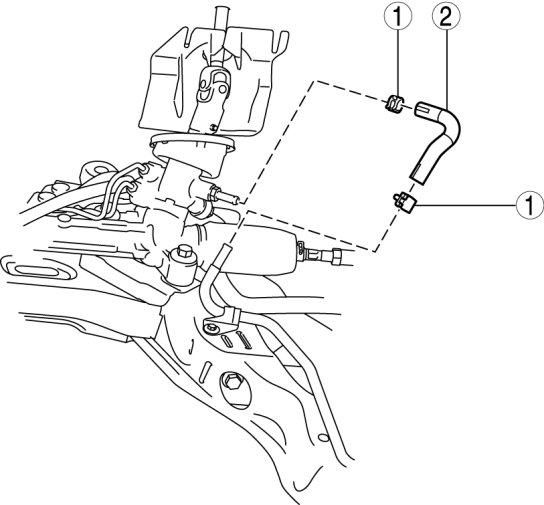

Return Hose Removal/Installation

1. Remove the aerodynamic under cover NO.2. Aerodynamic Under Cover No. 2 Removal/Installation

2. Set the front mudguard (LH) out of the way. Service and Repair

3. Remove the splash shield (LH).

4. Remove in the order indicated in the table.










5. Install in the reverse order of removal.

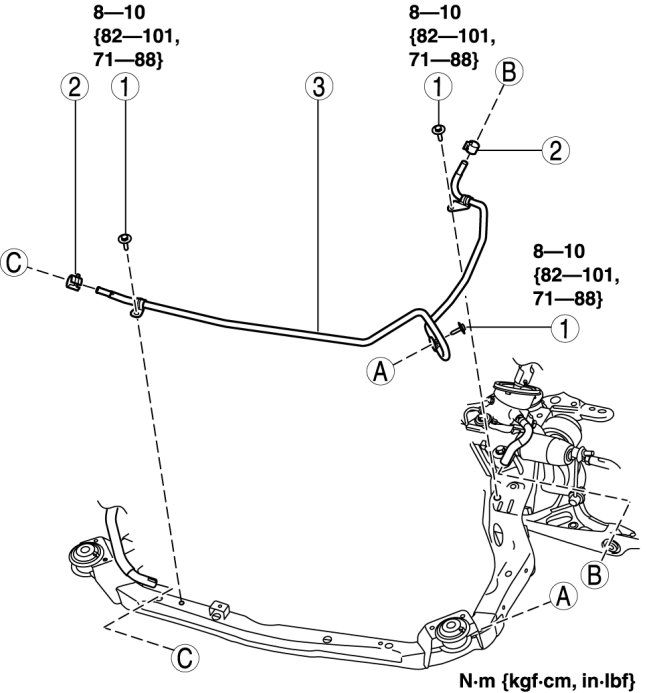

Cooling Pipe Removal/Installation

1. Remove the aerodynamic under cover NO.2. Aerodynamic Under Cover No. 2 Removal/Installation

2. Set the front mudguard (LH) out of the way. Service and Repair

3. Remove the splash shield (LH).

4. Remove in the order indicated in the table.










5. Install in the reverse order of removal.
