Intake Manifold

Intake Manifold

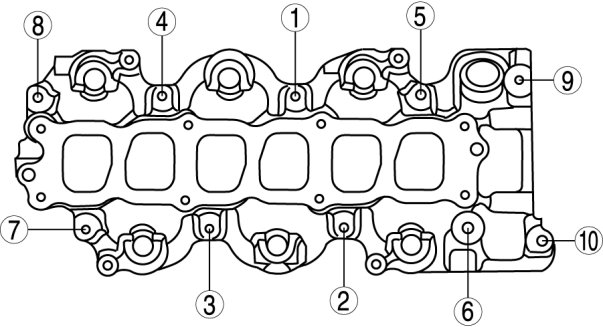

Tighten the intake manifold installation bolts in the order shown.

Intake manifold installation bolt tightening torque 9-11 Nm {92-112 kgf-cm, 80-97 in-lbf}

Dynamic Chamber

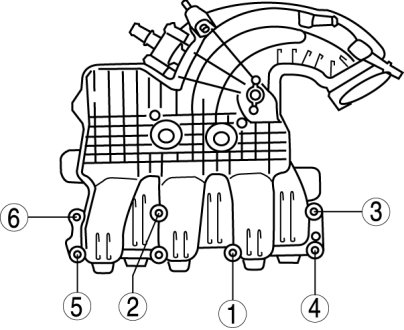

Tighten the dynamic chamber installation bolts in the order shown.

Dynamic chamber installation bolt tightening torque 9-11 Nm {92-112 kgf-cm, 80-97 in-lbf}
