Water Pump

Water Pump

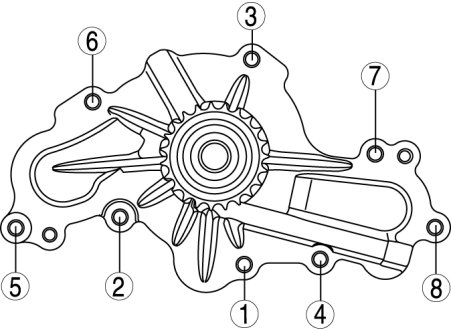

Tighten the water pump bolts in the order shown in the figure.

Tightening torque 9-11 Nm {92-112 kgf-cm, 80-97 in-lbf}
