With rear mount camera

  1. Disconnect the negative battery cable.
  2. Remove the rear finisher. (See REAR FINISHER REMOVAL/INSTALLATION .)
  3. Remove the trunk lid opener switch. (See TRUNK LID OPENER SWITCH REMOVAL/INSTALLATION .)
  4. Verify the continuity of trunk lid opener switch terminals C and F.

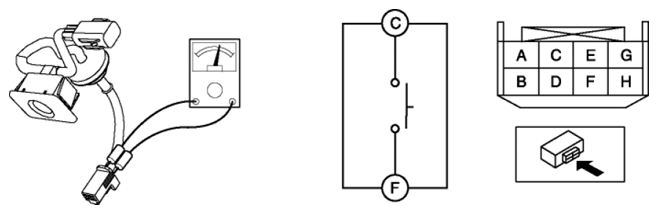

    Fig 1: Checking Continuity Of Trunk Lid Opener Switch Terminals C And F
    G08144640
  5. Verify that the continuity is as indicated in the table.
    Fig 2: Trunk Lid Opener Switch Terminals Continuity Chart
    G08144641
    • If not as indicated in the table, replace the trunk lid opener switch.
