Position Memory Switch Inspection

Disconnect the position memory switch connector.
Inspect for continuity between the power seat switch connector terminals.

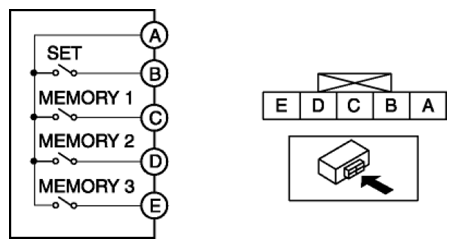

Fig 1: Identifying Power Seat Switch Connector Terminals
- If not as specified, replace the position memory switch. (See POSITION MEMORY SWITCH REMOVAL/INSTALLATION .)

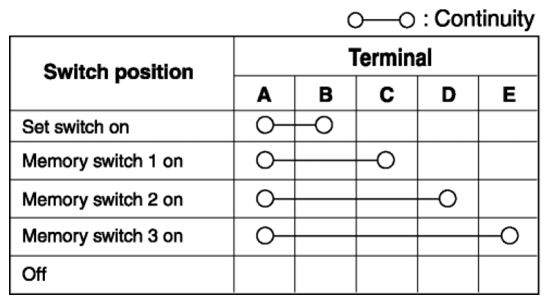

  Fig 2: Power Seat Switch Connector Terminals Continuity Chart
