Power Steering Fluid Line Component Removal/Installation [MZR 2.5]: Notes

NOTE:
  • The following procedure is for replacement of the parts shown in the figure.

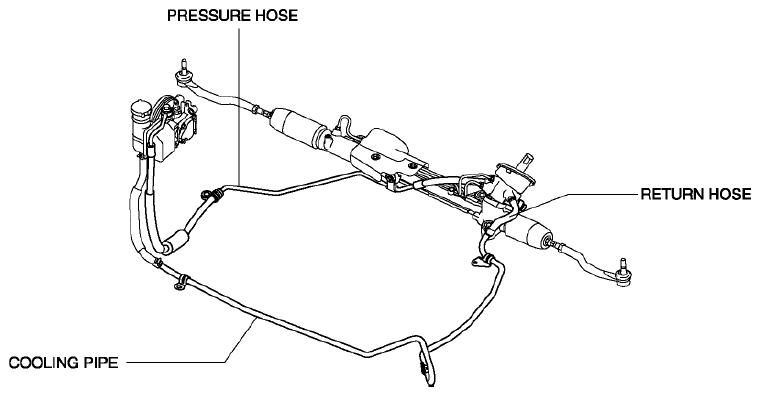

Fig 1: Identifying Power Steering Fluid Line Component
G08143483
