DTC B112A:12 [Advanced Keyless Entry And Push Button Start System]: Notes

DETECTION CONDITION	IG2 relay output circuit voltage higher than threshold (2.2-6.5 V  ) is detected for 0.1 s  , while the circuit is not active

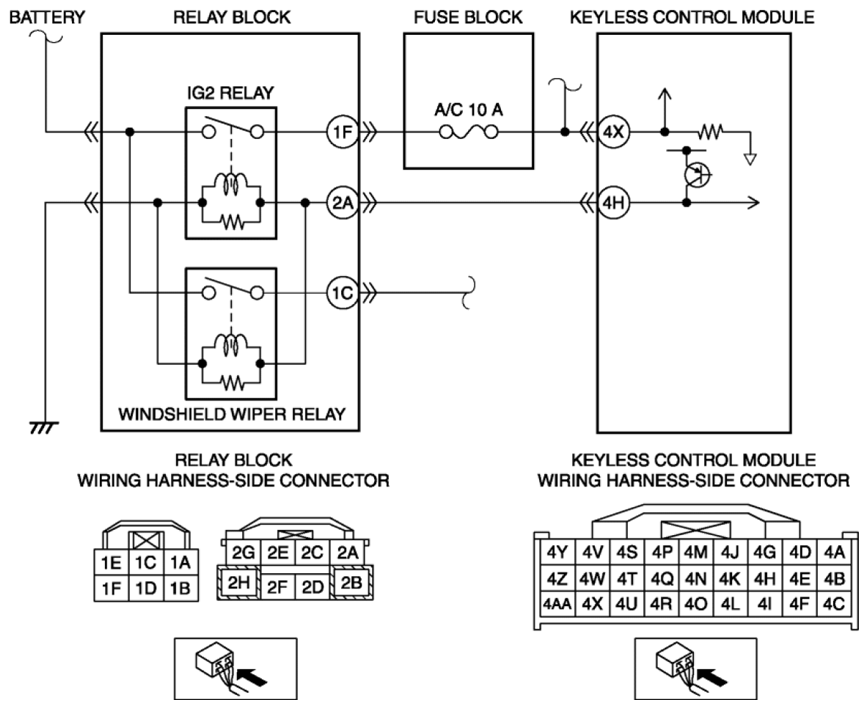

POSSIBLE CAUSE	Connector or terminal malfunction Short to power supply in wiring harness between relay block terminal 2A and keyless control module terminal 4H Relay block malfunction Keyless control module malfunction
