Security Light: 13, DTC: B10D7:94/P1260:00 [Immobilizer System (Keyless Entry System)]: Notes

DTC  Security light flashing pattern  13  Key ID number data cannot be read
M-MDS display  Instrument cluster B10D7:94
PCM  P1260:00
POSSIBLE CAUSE
  • There is no transponder in the key
  • Transponder malfunction (key code is not output)

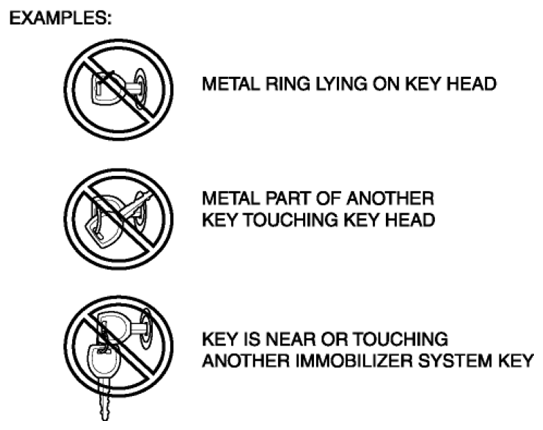

  • If any of the following items are touching or near key head, signal communication between key and vehicle is negatively affected, resulting in the engine not starting:
    • Spare keys
    • Keys for other vehicles equipped with immobilizer system
    • Any metallic object
    • Any electronic device, or any credit or other card with magnetic strips
G08143994
  • Coil antenna malfunction
  • PCM malfunction
  • Instrument cluster malfunction
