Vehicle Interior, Center

  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION )
    2. Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    3. Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    4. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    5. Center panel lower (See CENTER PANEL LOWER REMOVAL/INSTALLATION .)
    6. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION .)
  3. Disconnect the connector.

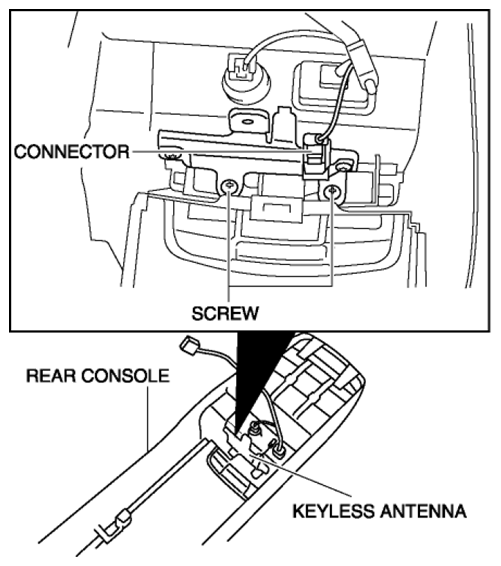

    Fig 1: Identifying Connector, Bolt And Keyless Antenna
    G08144611
  4. Remove the bolt.
  5. Remove the keyless antenna.
  6. Install in the reverse order of removal.
