Vehicle Interior, Rear

  1. Disconnect the negative battery cable.
  2. Remove the rear seat cushion. (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
  3. Disconnect the connector.

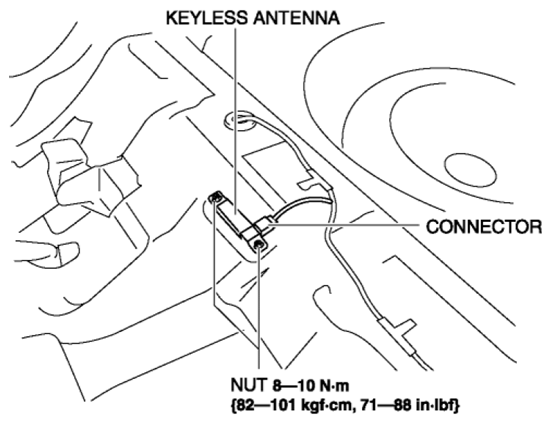

    Fig 1: Identifying Nut, Keyless Antenna And Connector
    G08144612
  4. Remove the nuts.
  5. Remove the keyless antenna.
  6. Install in the reverse order of removal.
