Keyless Control Module Configuration [Advanced Keyless Entry And Push Button Start System]

Connect the M-MDS (IDS) to DLC-2.

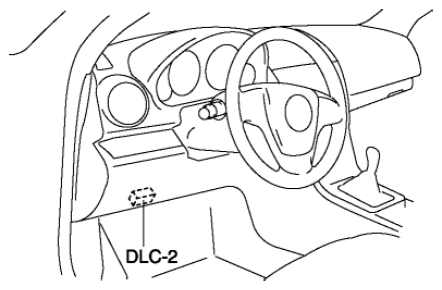

Fig 1: Identifying DLC-2 Location
After the vehicle is identified, select the following items from the initial screen of the IDS.
1. Select the "Module Programming".
2. Select "Programmable Module Installation".
3. Select "RKE".
Perform the configuration according to the directions on the screen.
Retrieve DTCs by the M-MDS, then verify that there is no DTC present.
- If a DTC (s) is detected, perform the applicable DTC inspection. (See DTC TABLE [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM] .)
