Vehicle Exterior (With Advanced Keyless Entry And Push Button Start System)

  1. Disconnect the negative battery cable.
  2. Remove the rear finisher. (See REAR FINISHER REMOVAL/INSTALLATION .)
  3. Disconnect the rear mount camera connector. (with rear mount camera)

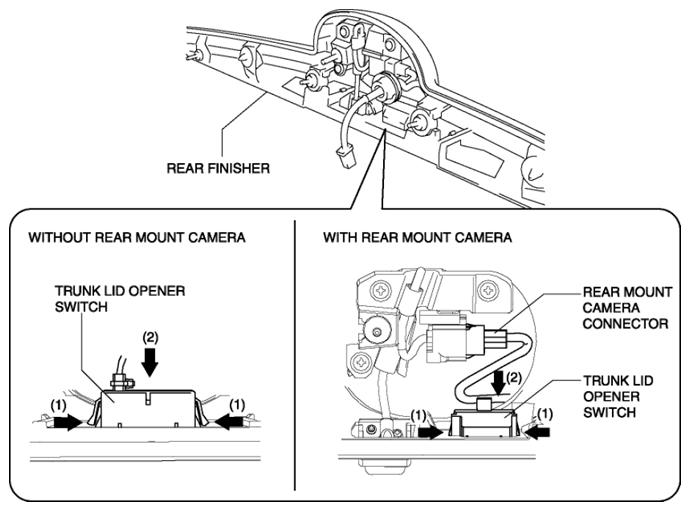

    Fig 1: Identifying Trunk Lid Opener Switch Tabs With/Without Camera
    G08144635
  4. Remove the trunk lid opener switch in the direction of the arrow (2) shown in the figure while pressing the trunk lid opener switch tabs in the direction of the arrow (1).
  5. Install in the reverse order of removal.
