| DTC U3003:16 |
BSM control module power supply voltage decreases (less than 9 V
) |
| DTC U3003:17 |
BSM control module power supply voltage increases (more than 16 V
) |

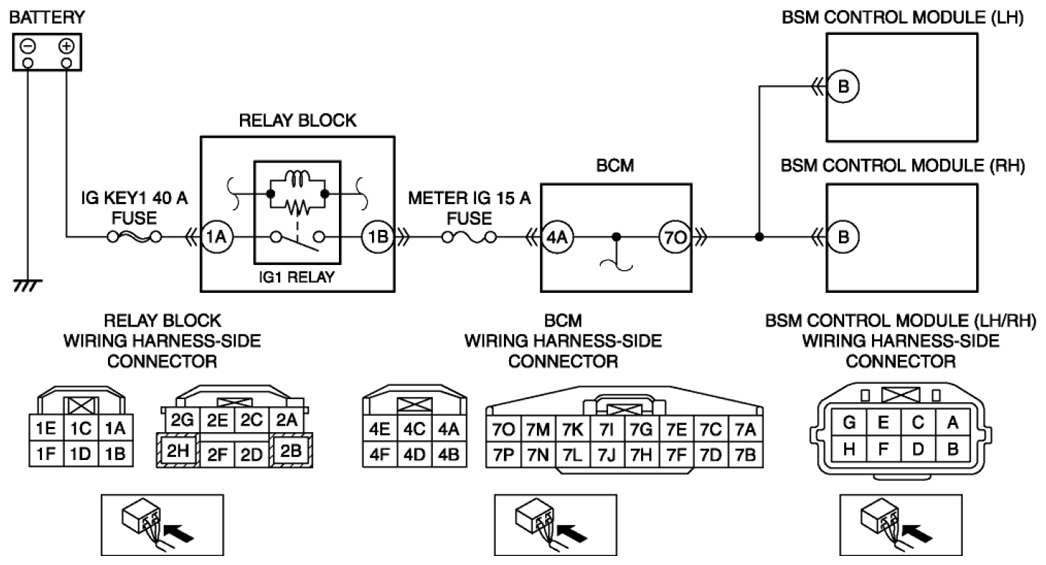

| DETECTION CONDITION |
- BSM control module power supply voltage is not within 9-16 V
.
|
| POSSIBLE CAUSE |
- Fuse malfunction
- Battery malfunction
- Generator malfunction
- Connector or terminal malfunction
- Short to ground in wiring harness between battery positive terminal and relay block terminal 1A
- Open circuit in wiring harness between battery positive terminal and relay block terminal 1A
- Relay block malfunction
- Short to ground in wiring harness between relay block terminal 1B and BCM terminal 4A
- Open circuit in wiring harness between relay block terminal 1B and BCM terminal 4A
- BCM malfunction
- Short to ground in wiring harness between BCM terminal 7O and BSM control module (LH/RH) terminal B
- Open circuit in wiring harness between BCM terminal 7O and BSM control module (LH/RH) terminal B
- BSM control module (LH/RH) malfunction
|
|
|
