DTC B100C:11 [Advanced Keyless Entry And Push Button Start System]: Notes

DETECTION CONDITION	Steering lock unit power supply circuit voltage less than threshold is detected for 0.2 s  , while the circuit is active

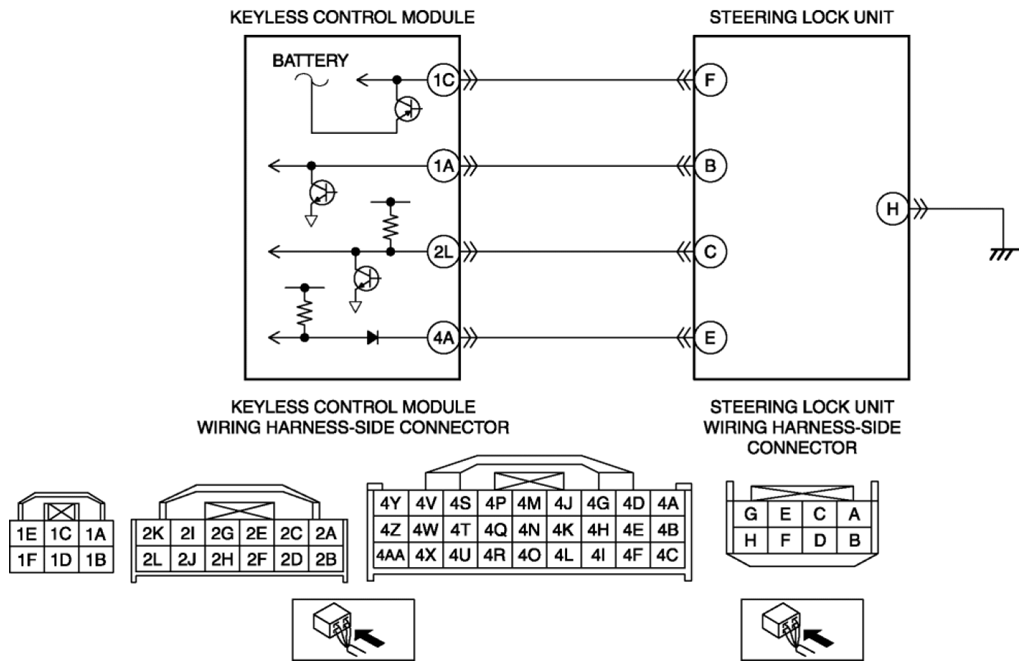

POSSIBLE CAUSE	Connector or terminal malfunction Short to ground in wiring harness between steering lock unit terminal F and keyless control module terminal 1C Steering lock unit malfunction Keyless control module malfunction
