Security Light: 11, DTC: B10D9:87/P1260:00 [Immobilizer System (Advanced Keyless Entry And Push Button Start System)]: Notes

DTC  Security light flashing pattern  11  No detected communication with coil antenna
M-MDS display  Keyless control module  B10D9:87
PCM  P1260:00
POSSIBLE CAUSE
  • Connector or terminal malfunction
  • Open circuit in coil antenna ground circuit
  • Short to ground in coil antenna power supply circuit
  • Open circuit in coil antenna power supply circuit

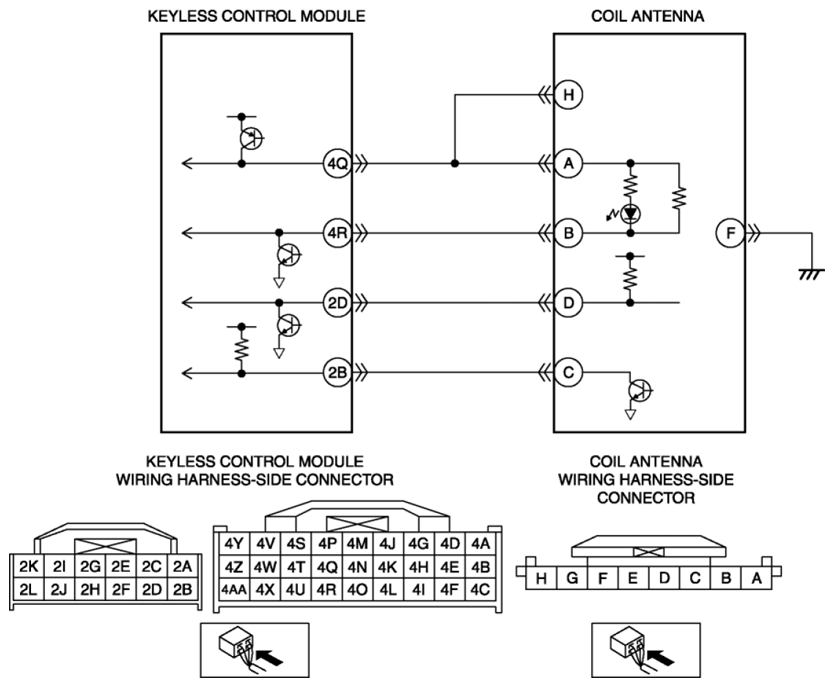

  • Open circuit in wiring harness between coil antenna terminal B and keyless control module terminal 4R
  • Open circuit in wiring harness between coil antenna terminal D and keyless control module terminal 2D
  • Open circuit in wiring harness between coil antenna terminal C and keyless control module terminal 2B
  • Coil antenna malfunction
  • Keyless control module malfunction
G08143973
