Security Light: 13, DTC: B10D7:05/P1260:00 [Immobilizer System (Advanced Keyless Entry And Push Button Start System)]: Notes

DTC  Security light flashing pattern  13  Key ID number program error
M-MDS display  Keyless control module  B10D7:05
PCM  P1260:00
POSSIBLE CAUSE
  • Errors during key ID number program procedure

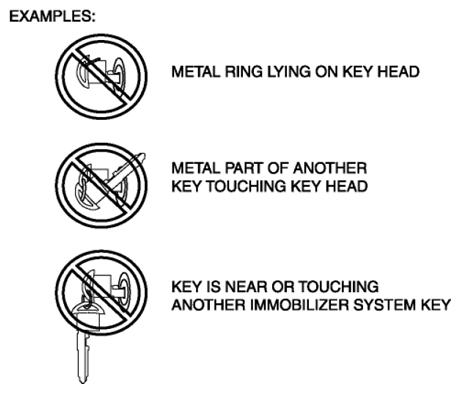

  • If any of the following items are touching or near key head, signal communication between key and vehicle is negatively affected, resulting in engine not starting:
    • Spare keys
    • Keys for other vehicles equipped with immobilizer system
    • Any metallic object
    • Any electronic device, or any credit or other card with magnetic strips
G08143974
  • PCM malfunction
  • Keyless control module malfunction
