Security Light: 14, DTC: B10D7:81/P1260:00 [Immobilizer System (Advanced Keyless Entry And Push Button Start System)]: Notes

DTC  Security light flashing pattern  14  Keyless control module cannot read key ID number data normally
M-MDS display  Keyless control module  B10D7:81
PCM  P1260:00
POSSIBLE CAUSE
  • Connector or terminal malfunction
  • Transponder (key) malfunction

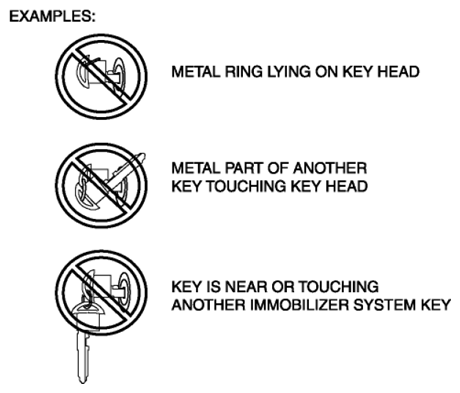

  • If any of the following items are touching or near key head, signal communication between key and vehicle is negatively affected, resulting in engine not starting:
    • Spare keys
    • Keys for other vehicles equipped with an immobilizer system
    • Any metallic object
    • Any electronic device, or any credit or other card with magnetic strips
G08143976
  • Coil antenna malfunction
  • PCM malfunction
  • Keyless control module malfunction
