Advanced Key Id Code Registration [Advanced Keyless Entry And Push Button Start System]

NOTE:

For a key that can start the engine, or no advanced key, the M-MDS can be used to force the ignition to switch is IG ON. (See FORCED IGNITION ON [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM] .)

Fully lower the driver-side door glass.
Connect the M-MDS (IDS) to the DLC-2.

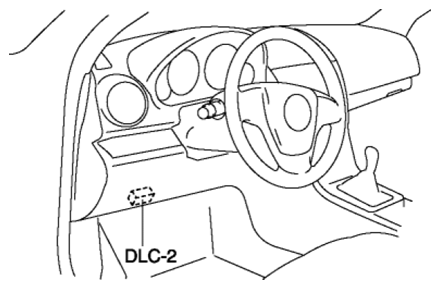

Fig 1: Identifying DLC-2 Location
Set the M-MDS outside the vehicle with its cable passing through the door glass opening.
CAUTION:
- Cover the vehicle body with a clean rag so as not to damage the vehicle body with the cable.
After the vehicle is identified, select the following items from the initial screen of the M-MDS.
- When using an IDS (laptop PC)
  - Select the "Body"
  - Select the "Security"
  - Select the "PATS Functions"
Select the following from the screen menu.
item
- Program Additional Advanced Key
Perform the security access according to the directions on the M-MDS screen.
