8Way Power Seat Switch Connector End View (Vehicles Without Position Memory Control System)

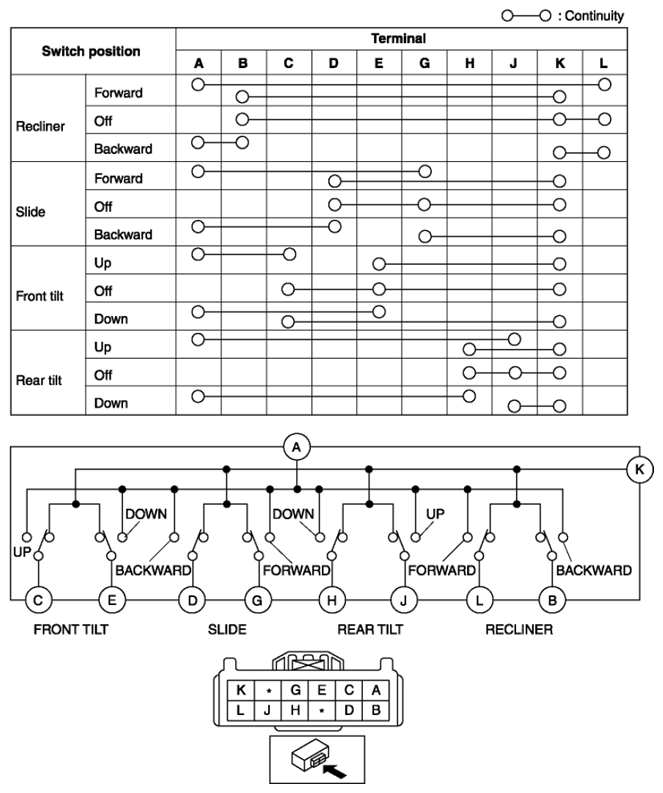

Fig 1: 8Way Power Seat Switch Connector End View (Vehicles Without Position Memory Control System)
G08144454Courtesy of MAZDA MOTORS CORP.
