Light Switch Connector End View (Vehicles With Auto Light System)

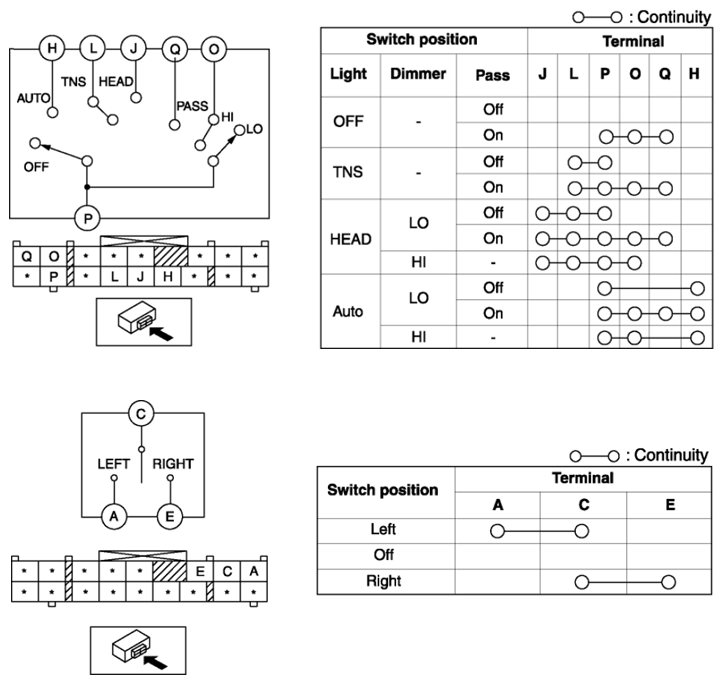

Fig 1: Light Switch Connector End View (Vehicles With Auto Light System)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
