Keyless Entry System (Without Advanced Keyless Entry And Push Button Start System) (Includes TPMS Information)

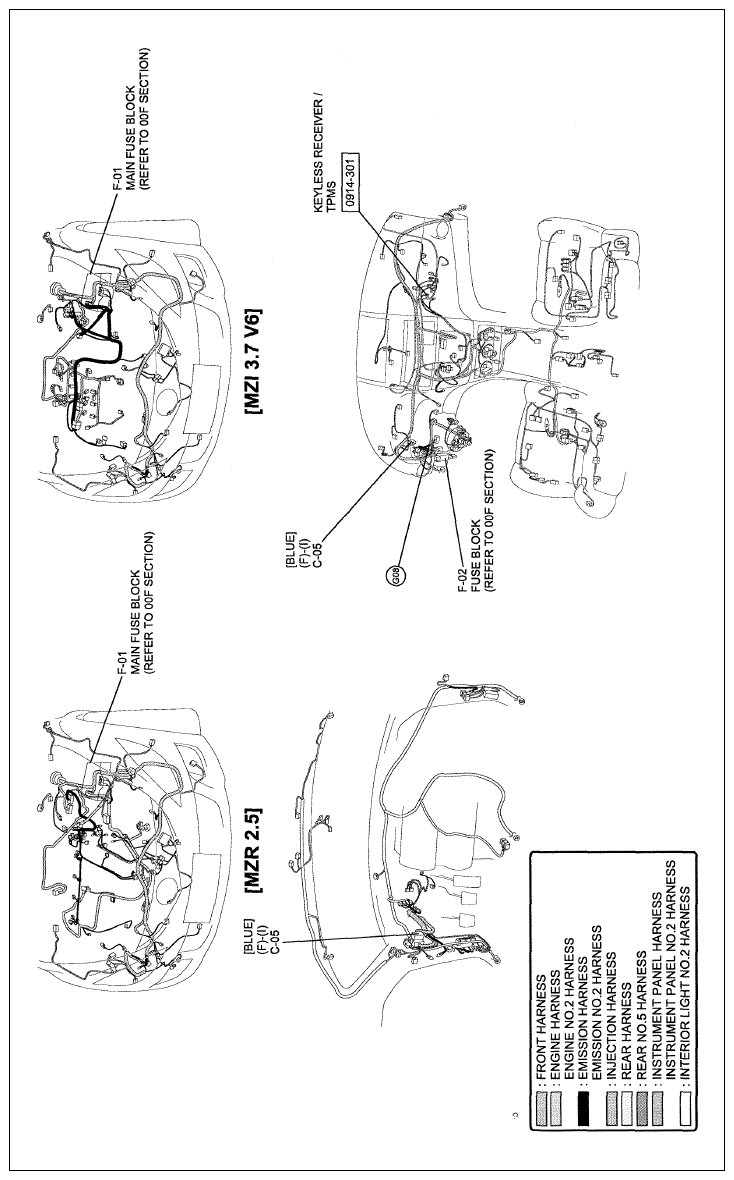

Fig 1: Keyless Entry System (Without Advanced Keyless Entry And Push Button Start System) (Includes TPMS Information) Wiring Diagram (0914-3; 1 Of 2)

Courtesy of MAZDA MOTORS CORP.

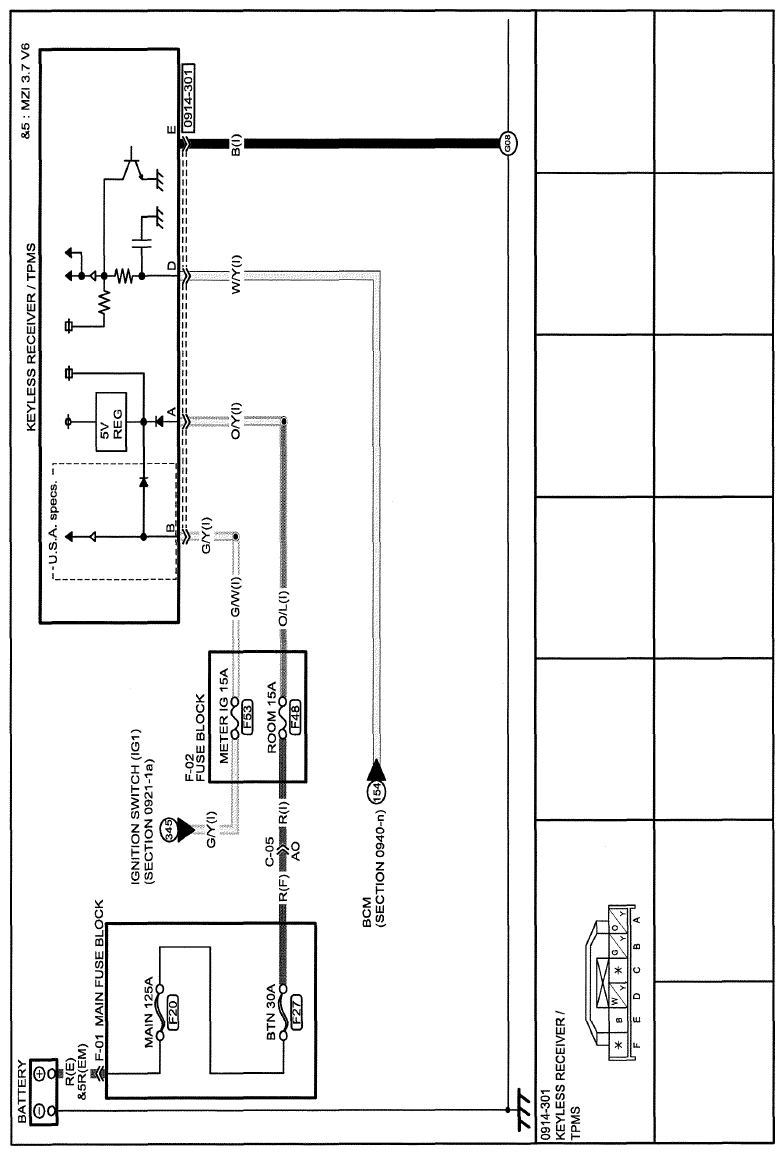

Fig 2: Keyless Entry System (Without Advanced Keyless Entry And Push Button Start System) (Includes TPMS Information) Wiring Diagram (0914-3; 2 Of 2)

Courtesy of MAZDA MOTORS CORP.
