Rear Door Latch Switch Inspection

  1. Fully open the rear door glass.
  2. Disconnect the negative battery cable.
  3. Remove the following parts:
    1. Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION .)
    2. Rear door speaker (See REAR DOOR SPEAKER REMOVAL/INSTALLATION .)
    3. Rear door quarter glass (See REAR DOOR QUARTER GLASS REMOVAL/INSTALLATION .)
    4. Rear door glass (See REAR DOOR GLASS REMOVAL/INSTALLATION .)
    5. Rear door module panel (See REAR DOOR MODULE PANEL REMOVAL/INSTALLATION .)
    6. Rear door latch and lock actuator (See REAR DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION .)

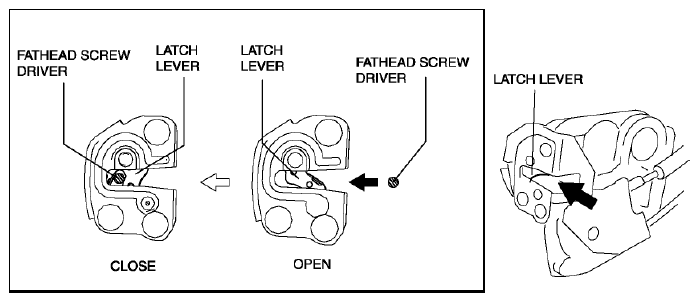

  4. Press the latch in using a flathead screwdriver to inspect the latch lever condition.
    Fig 1: Inspecting Latch Lever Condition
    G08144551
  5. Verify that the continuity is as indicated in the table.
    Fig 2: Identifying Door Latch Switch Terminals
    G08144552
    Fig 3: Door Latch Switch Terminals Continuity Chart
    G08144553
    • If not as indicated in the table, replace the rear door latch and lock actuator.
