Ignition Switch Inspection [Without Advanced Keyless Entry And Push Button Start System]

Disconnect the negative battery cable.
Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
Remove the ignition switch. (See IGNITION SWITCH REMOVAL/INSTALLATION [WITHOUT ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM] .)
Verify that the continuity between the ignition switch terminals is as indicated in the table.

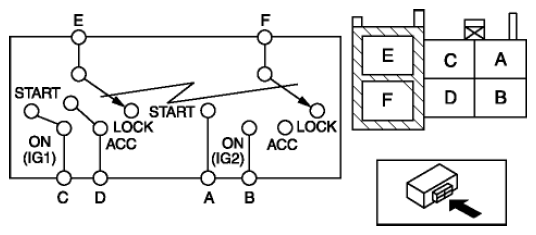

Fig 1: Identifying Ignition Switch Connector Terminals (Without Advanced Keyless Entry And Push Button Start System)
Courtesy of MAZDA MOTORS CORP.
- If not as indicated in the table, replace the ignition switch.

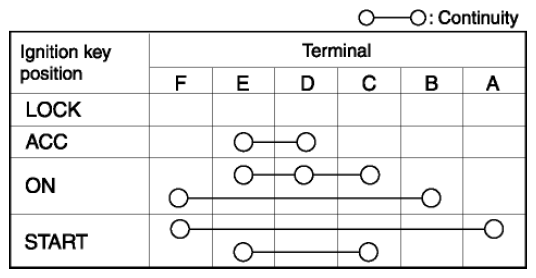

  Fig 2: Ignition Switch Connector Terminal Continuity Chart (Without Advanced Keyless Entry And Push Button Start System)
  Courtesy of MAZDA MOTORS CORP.
