Ignition Switch Removal/Installation [Without Advanced Keyless Entry And Push Button Start System]

Disconnect the negative battery cable.
Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
Pull the pin in the direction of the arrow shown in the figure and release the lock.

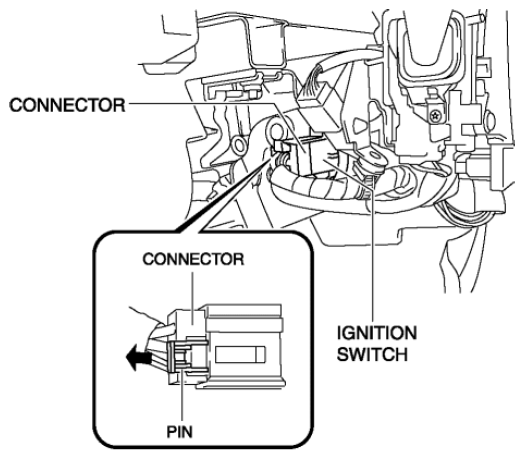

Fig 1: Ignition Switch Connector Pin
Courtesy of MAZDA MOTORS CORP.
Disconnect the connector.
Remove the screw.

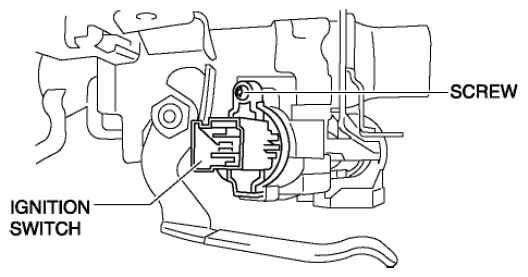

Fig 2: Ignition Switch And Screw
Courtesy of MAZDA MOTORS CORP.
Remove the tabs.

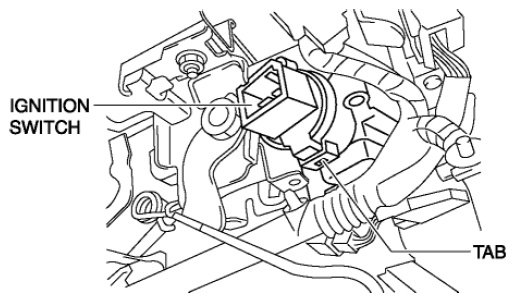

Fig 3: Ignition Switch And Tabs
Courtesy of MAZDA MOTORS CORP.
Remove the ignition switch.
Install in the reverse order of removal.
