Key Reminder Switch Removal/Installation [Without Advanced Keyless Entry And Push Button Start System]

  1. Disconnect the negative battery cable.
  2. Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
  3. Disconnect the key reminder switch connector.

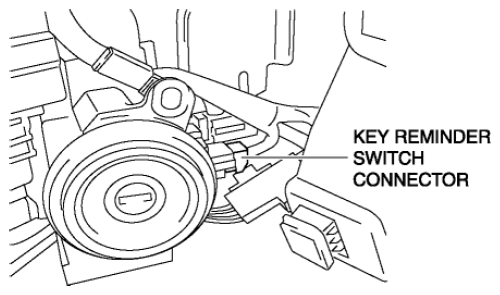

    Fig 1: Identifying Key Reminder Switch Connector
    G08145033Courtesy of MAZDA MOTORS CORP.
  4. Detach the key reminder switch tab.

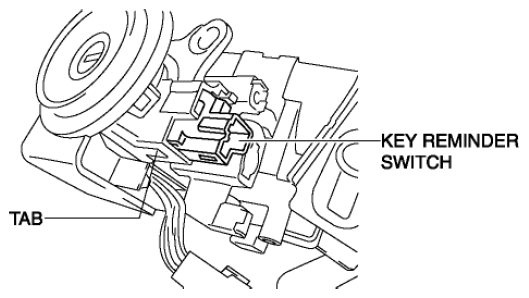

    Fig 2: Identifying Key Reminder Switch And Tab
    G08145034Courtesy of MAZDA MOTORS CORP.
  5. Remove the key reminder switch.
  6. Install in the reverse order of removal.
