Main Fuse Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the nuts.

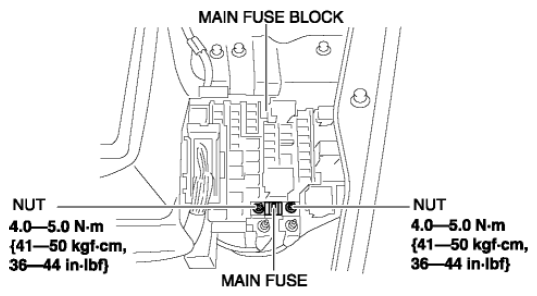

    Fig 1: Main Fuse Block, Main Fuse And Nuts With Torque Specification
    G08145027Courtesy of MAZDA MOTORS CORP.
  3. Remove the main fuse from the main fuse block.
  4. Install in the reverse order of removal.
