Push Button Start Removal/Installation [With Advanced Keyless Entry And Push Button Start System]

Disconnect the negative battery cable.
Remove the following parts:
1. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
2. Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
3. Shift knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
4. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
5. Center panel lower (See CENTER PANEL LOWER REMOVAL/INSTALLATION .)
Release the tabs and remove the push button start from the center panel lower.

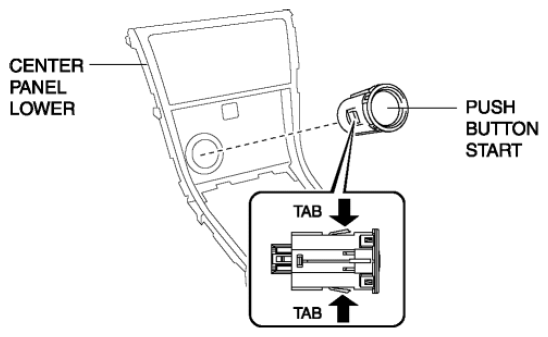

Fig 1: Push Button Start Components And Center Panel Lower
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
