Relay Block Inspection [With Advanced Keyless Entry And Push Button Start System]

Disconnect the negative battery cable.
Remove the lower panel. (See LOWER PANEL REMOVAL/INSTALLATION .)
Remove the knee bolster. (See KNEE BOLSTER REMOVAL/INSTALLATION .)
Remove the relay block. (See RELAY BLOCK REMOVAL/INSTALLATION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM] .)
Verify that the continuity is as indicated in the table.

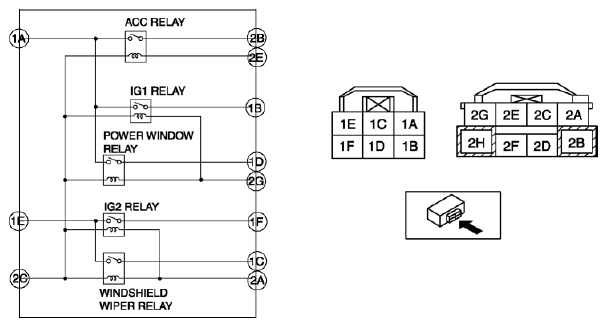

Fig 1: Relay Block Circuit (With Advanced Keyless Entry And Push Button Start System)
Courtesy of MAZDA MOTORS CORP.
- If not as indicated in the table, replace the relay block.

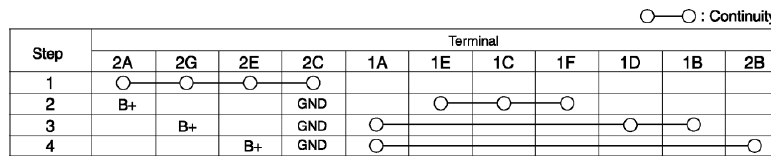

  Fig 2: Relay Block Terminals Continuity Chart (With Advanced Keyless Entry And Push Button Start System)
  Courtesy of MAZDA MOTORS CORP.
