Pcm Removal/Installation

Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZI 3.7 V6] .)
Remove the battery and battery tray. (See BATTERY REMOVAL/INSTALLATION [MZI 3.7 V6] )
Remove all connectors and clips which may interfere with servicing.
Loosen the PCM bracket nuts.

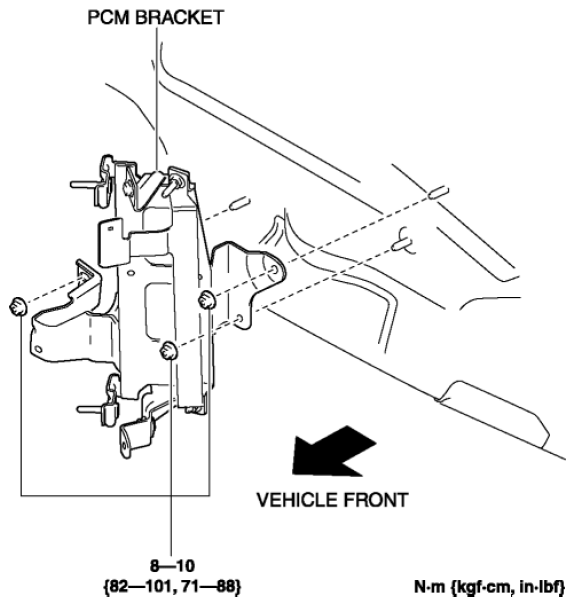

Fig 1: PCM Bracket Nuts With Torque Specification
Remove the PCM from the PCM bracket.

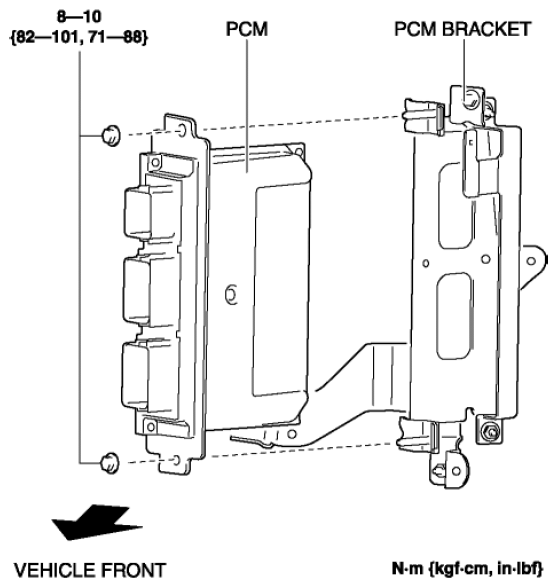

Fig 2: PCM, PCM Bracket And Nuts With Torque Specification
Remove the PCM bracket.

Fig 3: PCM Bracket And Nuts With Torque Specification
Install in the reverse order of removal.
When replacing the PCM on the vehicles, perform the following:
- PCM configuration (See PCM CONFIGURATION .)
- Immobilizer system component replacement/key addition and clearing (See IMMOBILIZER SYSTEM-RELATED PARTS PROGRAMMING [KEYLESS ENTRY SYSTEM] .) (See IMMOBILIZER SYSTEM-RELATED PARTS PROGRAMMING [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM] .)
