Circuit Open/Short Inspection: Notes

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the PCM connector.
  2. Inspect the following wiring harness for open or short (continuity check).

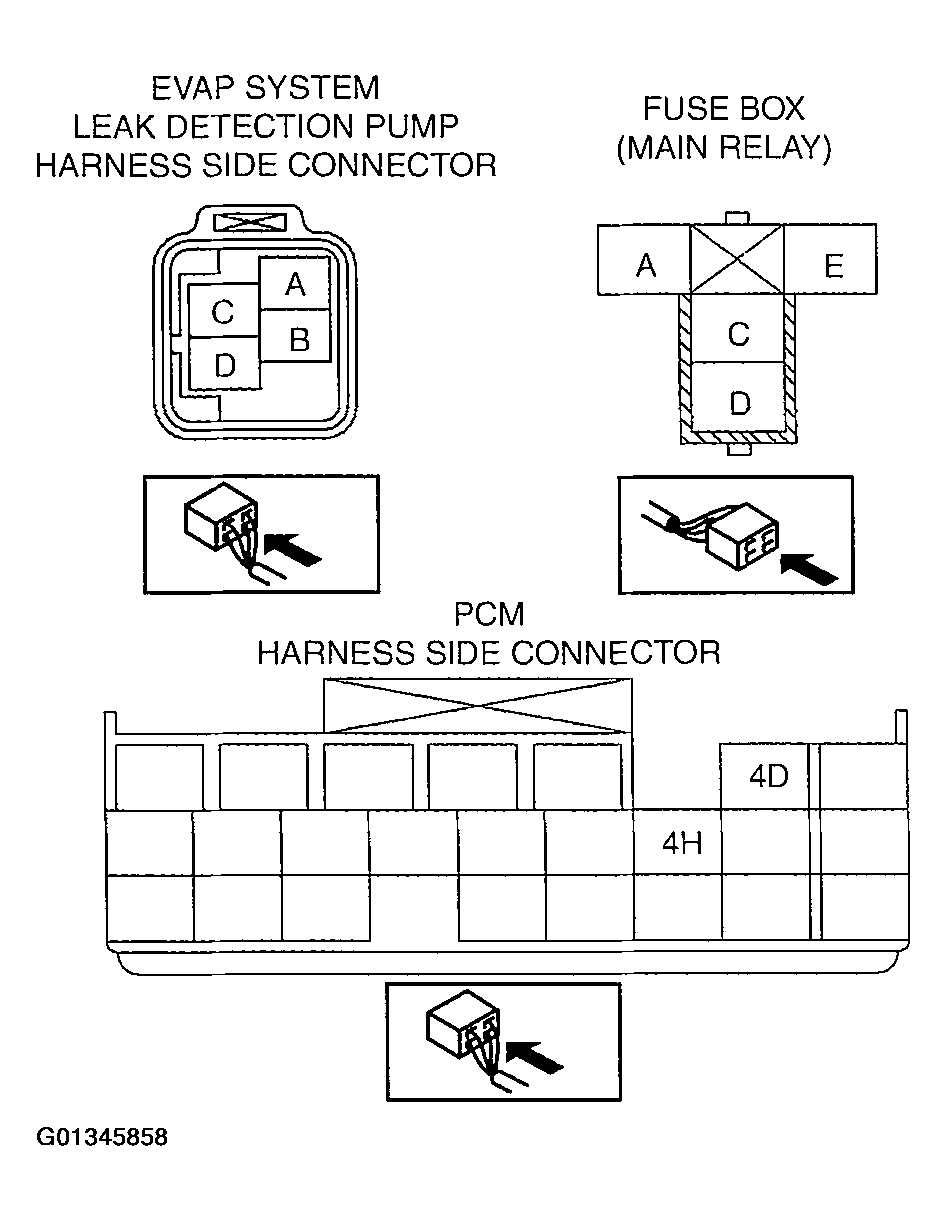

    Fig 1: Identifying EVAP System Leak Detection Pump, Main Relay & PCM Connector Terminals
    G01345858Courtesy of MAZDA MOTORS CORP.
