Joint Bolt (Intermediate Shaft) Removal Note

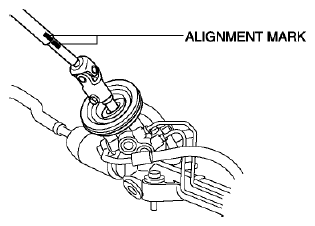

  1. Place alignment marks on the intermediate shaft joint as shown in the figure.
    Fig 1: Identifying Alignment Marks On Intermediate Shaft Joint
    G08143410
    NOTE:
    • Do not detach the intermediate shaft joint while servicing. If the intermediate shaft joint is mistakenly detached while servicing, align the alignment marks placed during the joint bolt removal and connect the intermediate shaft.

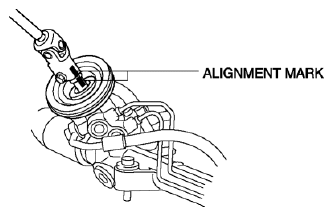

  2. Place alignment marks on the intermediate shaft joint, and the steering gear for proper installation.
    Fig 2: Identifying Alignment Marks On Intermediate Shaft Joint And Steering Gear
    G08143411
  3. Remove the joint bolt and detach the intermediate shaft from the steering gear.
