Steering Lock Mounting Bolt, Steering Lock Component Removal Note

  1. Make a groove in the heads of the steering lock mounting bolts using a chisel and hammer.

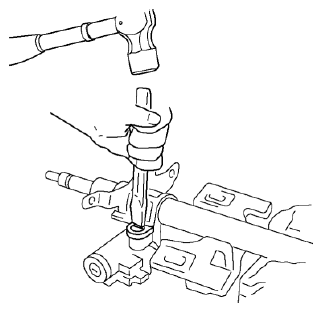

    Fig 1: Removing Steering Lock Mounting Bolt
    G08143400
  2. Remove the bolt using a flathead screwdriver, then remove the steering lock component from the steering shaft.
