Control Assembly: Adjustments

CLIMATE CONTROL UNIT WIRE ADJUSTMENT [MANUAL AIR CONDITIONER]

Air Mix Wire

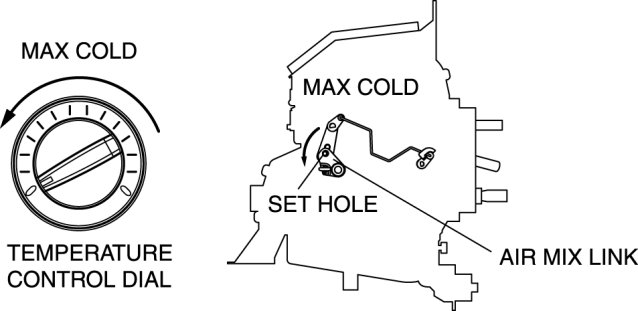

1. Set the temperature control dial to MAX COLD.

2. Set the air mix link to max cold in the direction shown by the arrow and insert a screwdriver at the set hole.






3. Connect the air mix wire to the air mix link.

4. Clamp the air mix wire to the wire clamp.

5. Verify that the temperature control dial rotates at full stroke.
